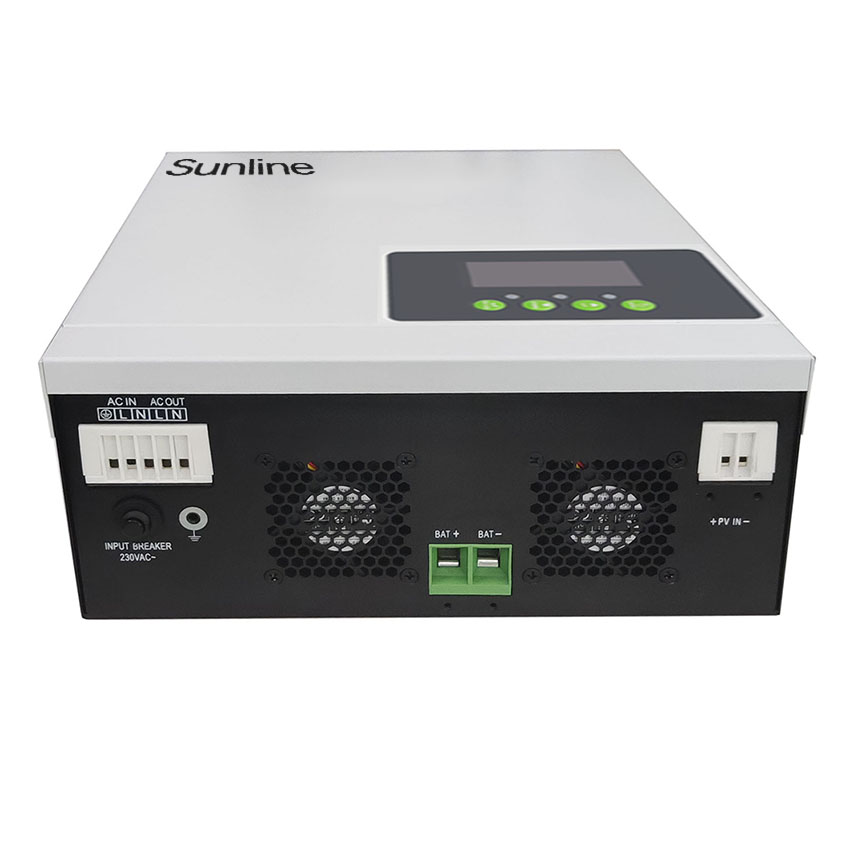

5000W Off Grid Inverter Wifi Control

SL5000-WIFI-500VDC

5000W Off Grid Inverter Wifi Control

SL5000-WIFI-500VDC

Product Description

5000W solar inverter, Built-in 6000W MPPT solar controller,  PV MPPT charger 48V 60A,  AC 220V Charger 48V 80A, Battery invert mode 5000W pure sine wave, WIFI remote control.

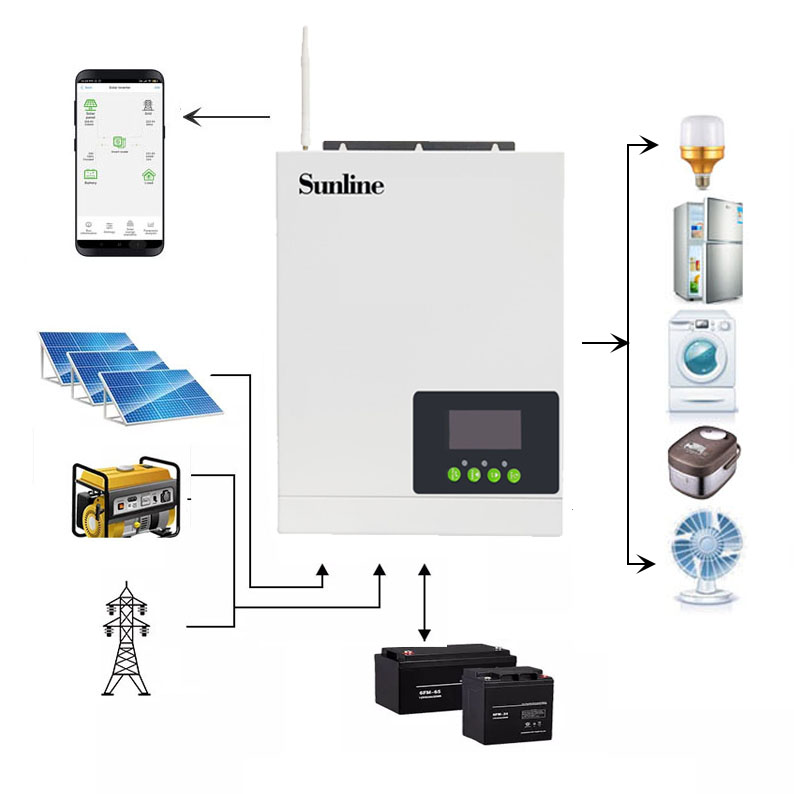

MPPT range 60V-450V,  495Voc,  Load sharing between Solar and Grid, Solar and Battery,   Power charge priority,  Output prioroity settings etc.

5000w solar inverter.jpg


ModelSL5000
Support Rated Battery48V

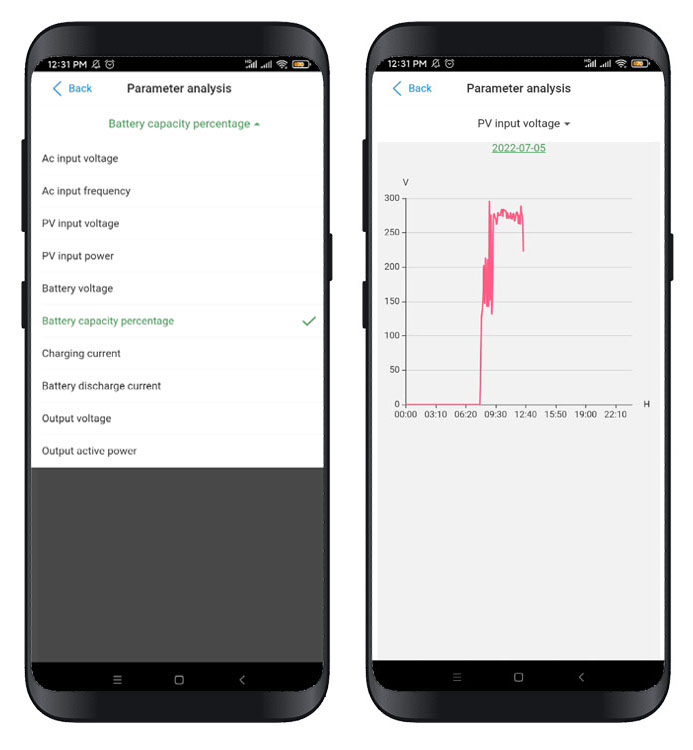

WIFI  Remote ControlAndroid & IOS
Battery
MPPT  ModeMPPT  Mode
Max. PV Array Power6000W
PV Array MPPT Voltage Range
PV start up voltage
Max. PV Array Open Circuit Voltage495Vdc
Max Charging Current
Line ModeLine Mode
Nominal AC Input Voltage/Waveform230Vac/Sinusoidal (utility or generator)
AC Input Range90~280Vac(Appliances);170Vac~280Vac(UPS)
Max AC Input Voltage300Vac
Nominal Input Frequency50Hz / 60Hz (Auto detection)
AC Input Frequency Range40~65±1Hz; (>42 or <63±1Hz comeback)
Output Short Circuit ProtectionCircuit Breaker
Efficiency (Line Mode)>95% ( Rated R load, battery full charged )
Transfer Time10ms typical (UPS);
20ms typical (Appliances)
Utility Charging ModeUtility Charging Mode
Charging Algorithm3-Step
AC Charging Current (Max)60Amp (@VI/P=230Vac)
Bulk Charging VoltageFlooded Battery58.4Vdc
AGM / Gel Battery56.4Vdc
Floating Charging Voltage54Vdc
Invert ModeInvert Mode
Rated Output Power5KVA/5KW
Output Voltage WaveformPure Sine Wave
Output Voltage/Frequency230Vac±5%/50Hz
Peak Efficiency94%
Overload Protection5s@≥150% load; 10s@110%~150% load
Surge Capacity2* rated power for 5 seconds
Nominal Battery Input Voltage48Vdc
Cold Start Voltage46.0Vdc
High DC Cut-off Voltage63Vdc
No Load Power Consumption<40W
Other informationOther information
Safety CertificationCE
Operating Temperature Range-10°C to 50°C
Storage temperature-15°C~ 60°C
Humidity5% to 95% Relative Humidity (Non-condensing)
EnclosureIP21
Dimension (D*W*H), mm110*309*415
Net Weight, kg9.6
Carton Dimension CM55*40*22
Gross weight With Package10.8
